Fiber Optical Cable Msfp To Fiber Optic Patch Cables Duplex 10gb With High Density

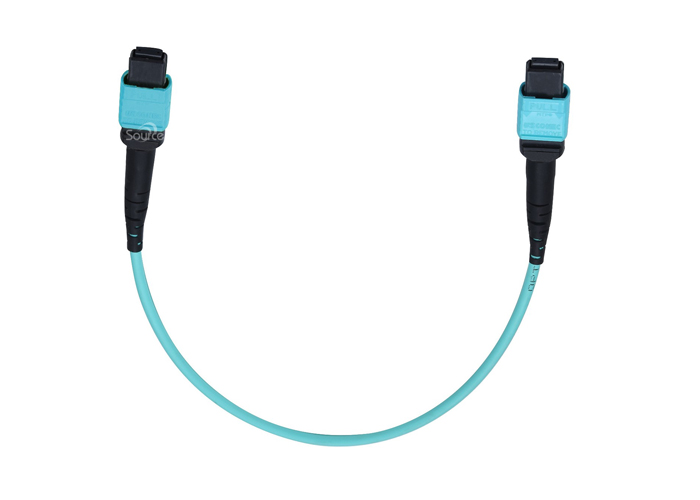

mSFP to MPO/MTP Duplex 10Gb Multimode OM3 Fiber Optic Patch Cables are specifically designed for CY COM's new FC8-64 high density blade. CY COM's mSFP MPO/MTP (Mini-MPO/MTP) interface offers unparalleled optical network performance at data-rates up to 10-Gigabits per second in a new high density 5.25mm pitch package. Aqua OM3 Laser Optimized Multimode Fiber is well suited for 850nm VCSEL 10GBASE-SR link distances up to 300m (984 ft). Each 50/125um multimode fiber optic patch cable utilizes a plenum-rated OFNP jacket for compatibility with most datacenter and critical area applications.

Product Features

Cable: 50/125um OM3 10Gb Laser Optimized Multimode Fiber (Zipcord)
Jacket: OFNP (Plenum Rated) for enhanced safety in air-handling conduit
Ideal for 10-Gigabit Ethernet backbone connections up to 300m in length
Cables are backward compatible with 50/125u OM2 optical networks
Precision-built, polished, and optically tested prior to shipment
Full support for LED and VCSEL light sources @ 850nm & 1300nm
Premium-grade molded strain relief boot provides added durability
Available in lengths ranging from 1m to 10m in length
Insertion Loss: = 0.30 dB
Return Loss: = 55 dB
Durability: 500 mating cycles per EIA/TIA-568-B.3
Bandwidth: 2000/500 MHz-km (OM3) @ 850/1300 nm
Our CY COM compatible mSFP cables cross reference with the following:
Amphenol P/N: 943-99865-10001 (1m), 943-99865-10002 (2m), 943-99865-10003 (3m), 943-99865-10005 (5m) & 943-99865-10010 (10m)
Molex P/N: 106273-0525 (1m), 106273-0526 (2m), 106273-0527 (3m), 106273-0528 (5m) & 106273-0529 (10m)
Corning P/N: S50502S5120001 (1m), S50502S5120002 (2m), S50502S5120003 (3m), S50502S5120005 (5m) & S50502S5120010 (10m)
