3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m

    Buy cheap 3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m from wholesalers

    Buy cheap 3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m from wholesalers
    • Buy cheap 3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m from wholesalers
    • Buy cheap 3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m from wholesalers

    3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : QSFP+ to 4sfp
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 200PCS Per Week
    Delivery Time : Shipped in 1~3 days after PO confirmed
    • Product Details
    • Company Profile

    3.3v 140g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m

    40g Qsfp+ Direct Attach Cable To 4 Sfp Aoc Active Optical Cable Om3 100m


    Overview

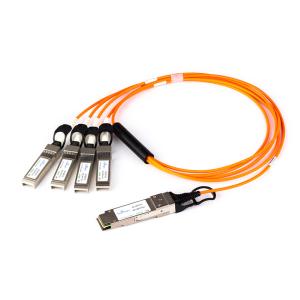

    Sourcelight QSFP to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

    For typical applications, users can install this splitter Active Optical cable between an available QSFP port on their 40Gbps rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter Active Optical cable features a single QSFP connector (SFF-8436) rated for 40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.


    Features

    • Electrical interface compliant to QSFP+ (SFF-8436)
    • SFP+ connectors (SFF-8431)
    • Hot Pluggable
    • 850nm VCSEL transmitter PIN photo detector receiver
    • Up to 100m on OM3 MMF
    • Operating case temperature: 0 to 70℃
    • All-metal housing for superior EMI performance
    • RoHS compliant

    Parameter

    Package (Form Factor)QSFP-4SFP+ AOC
    Data Rate (typical)10.3 Gbps/CH
    Distance100m on OM3 MMF
    Transmitter4CH VCSEL Array Laser
    Receiver4CH PIN photo detector Array
    TX Output Power (dBm)-7.5~+2.5
    RX Sensitivity (dBm)-5.4
    Low/High Case Temperature0°C~70°C
    Voltage Supply (typical)3.3v
    ConnectorQSFP+ SFP+

    Application
    • 40 Gigabit Ethernet
    • Fibre Channel Applications
    • InfiniBand QDR, SDR, DDR
    • High-performance computing clusters
    • Servers, switches, storage and host card adapters

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery
