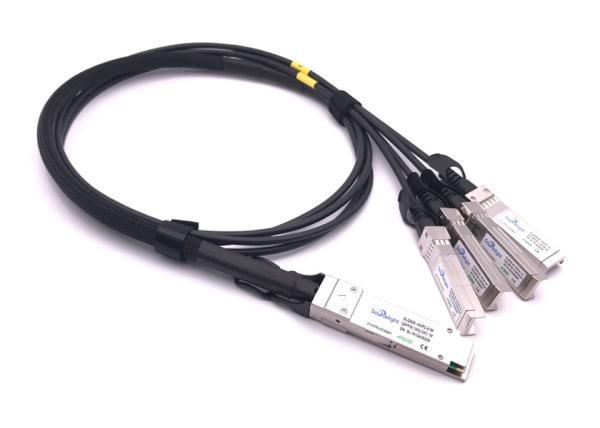

40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg

40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg

Overview

The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.

It is offer a low power consumption,short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply :+3.3V
Low power consumption: 0.02 W (typ.)
Temperature Range: 0~ 70 °C

Parameter

Package (Form Factor)	QSFP-4SFP+ Copper Cable
Data Rate (typical)	10.3 Gbps/CH
Distance	Up to 5m
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	QSFP SFP+

Application

40G QSFP+ to 4×10SFP+
10G/40Gigabit Ethernet
InfiniBand4x SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers
Fiber Channel

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
