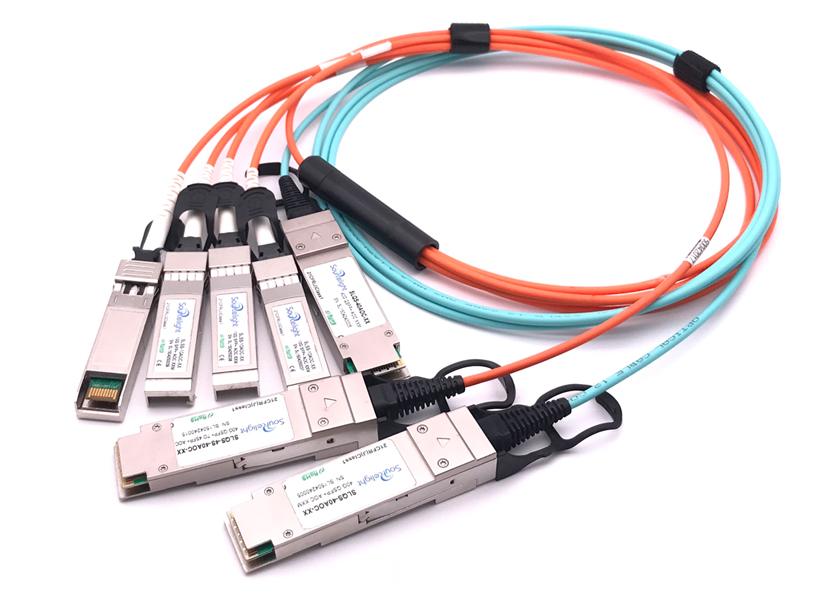

100g Qsfp28 Aoc Active Optical Cable Om4 Fiber 100m 25.78 Gbps/CH Datarate

100g Qsfp28 Aoc Active Optical Cable Om4 Fiber 100m 25.78 Gbps/CH Datarate

Overview
100G QSFP28 AOC is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector. This module incorporates Sourcelight proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features

4 channels full-duplex transceiver modules
Supports 100Gbps total data rate
Transmission data rate up to 28.05Gbps per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Low power consumption <3.5W
Hot Pluggable QSFP form factor
Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single MPO connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant (lead free)

Parameter

Package (Form Factor)	100G QSFP28 AOC
Data Rate (typical)	25.78 Gbps/CH
Distance	100m on OM4 MMF
Transmitter	4CH VCSEL Array Laser
Receiver	4CH PIN photo detector Array
TX Output Power (dBm)	-8.4~+2.4
RX Sensitivity (dBm)	-5.2
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	QSFP28

Application

IEEE 802.3bm 100GBASE SR4
Infiniband EDR
128G Fibre Channel
4x28Gb/s Multimode OTN

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

4. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

5. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Cash.Could also support Credit terms like NET 7DAYS,NET30 DAYS or COD(cash on delivery) for old customers after credit application is approved.

6. What is your warranty time
We promise 3 years warranty for all products shipped from us.
