Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m

    Buy cheap Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m from wholesalers

    Buy cheap Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m from wholesalers
    • Buy cheap Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m from wholesalers
    • Buy cheap Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m from wholesalers

    Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : 100G QSFP dac
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200PCS Per Week
    Delivery Time : Shipped in 1 days after PO confirmed
    • Product Details
    • Company Profile

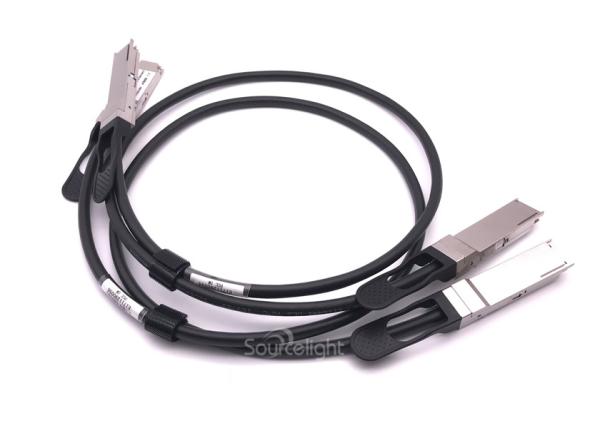

    Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m

    Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m


    Overview
    The 100G QSFP28 DAC cable assemblies are high performance, cost effective I/O solutions for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 100 Gigabit Ethernet, InfiniBand EDR and temperature requirements for performance and reliability.

    Features

    • QSFP28 conforms to the Small Form Factor SFF8665

    • 4-Channel Full-Duplex Passive Copper Cable Transceiver

    • Support data rates : 25.78Gb/s (per channel)

    • Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)

    • IEEE 802.3bj 100GEBASE-CR4

    • Copper link length up to 5m

    • Power Supply :+3.3V

    • Low crosstalk

    • I2C based two-wire serial interface for EEPROM signature which can be customized

    • Operating Temperature: 0~ 70 °C

    • RoHS Compliant


    Parameter

    Package (Form Factor)

    100G QSFP28 DAC Copper Cable

    Data Rate (typical)

    25.78 Gbps/CH

    Distance

    Up to 5m COPPER CABLE PASSIVE

    Low/High Case Temperature

    0°C~70°C

    Voltage Supply

    3.3v(typical)

    Connector

    QSFP28 100G


    Application

    • 100 Gigabit Ethernet

    • Fiber Channel over Ethernet

    • Data storage and communication industry

    • Switch / router / HBA

    • Enterprise network

    • SAN

    • Data Center Network

    Other 40G DAC

    Part NumberProduct DescriptionAWG
    QFX-QSFP-DAC-1M
    QFX-QSFP-DAC-1M40GBASE-CR4 QSFP+ direct-attach copper cable, 1 meter passive30
    QFX-QSFP-DAC-3M40GBASE-CR4 QSFP+ direct-attach copper cable, 3 meter passive30
    QFX-QSFP-DAC-5M40GBASE-CR4 QSFP+ direct-attach copper cable, 5 meters passive30
    QFX-QSFP-DAC-7M40GBASE-CR4 QSFP+ direct-attach copper cable, 7 meters passive30

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery


    Product Tags:

    qsfp28 dac cable



    qsfp28 active optical cable


    Quality Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m for sale

    Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m
