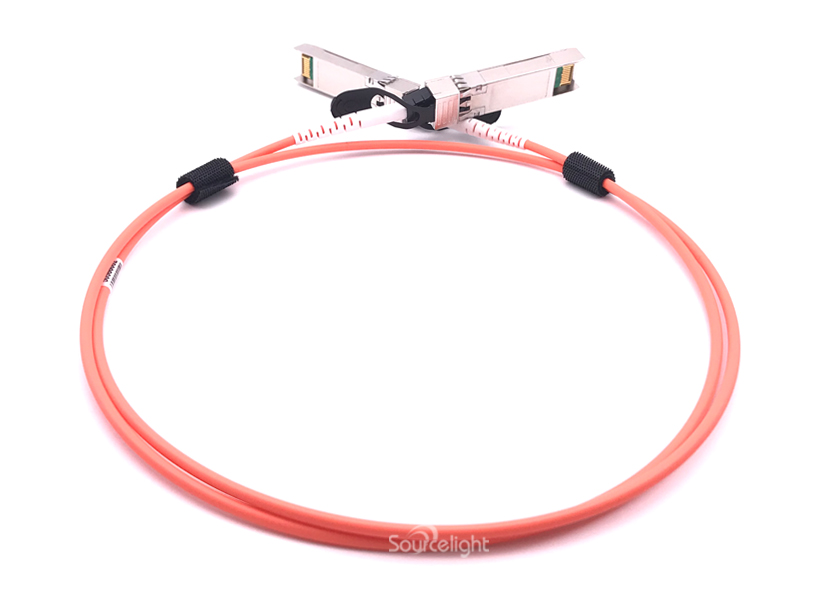

Active Optical Cable AOC-S-S-25G-15M OM4 3.0mm SFP28 To SFP28 Connector

AOC-S-S-25G-15M Compatible 25G SFP28 AOC OM4 Fiber Cable

Overview
Sourcelight SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks.

SFP28 Active Optical Cable is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector.

Features

Hot-pluggable SFP28 form factor
Supports 25Gbps data rate
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
850nm VCSEL laser and PIN photo-detector
Internal CDR on both Transmitter and Receiver channel
Single 3.3V power supply
Power dissipation < 1W
Digital diagnostics functions are available via the I2C interface

Parameter

Package (Form Factor)	SFP28 Active Optical Cable
Data Rate (typical)	25.78 Gbps/CH
Distance	100m on OM4 MMF
Transmitter	VCSEL Laser
Receiver	PIN photo detector
TX Output Power (dBm)	-8.4~+2.4
RX Sensitivity (dBm)	-10
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	SFP28 to SFP28

Application

25GBASE-SR Ethernet

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

4. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

5. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Cash.Could also support Credit terms like NET 7DAYS,NET30 DAYS or COD(cash on delivery) for old customers after credit application is approved.

6. What is your warranty time
We promise 3 years warranty for all products shipped from us.
