    2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : 2.5g bidi sfp
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500PCS Per Week
    Delivery Time : Shipped in 1 days after PO confirmed
    • Product Details
    • Company Profile

    2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel

    2.5g Bidi Sfp Optical Transceiver 80km 1550nm 1490nm For Ethernet Fiber Channel​


    Overview

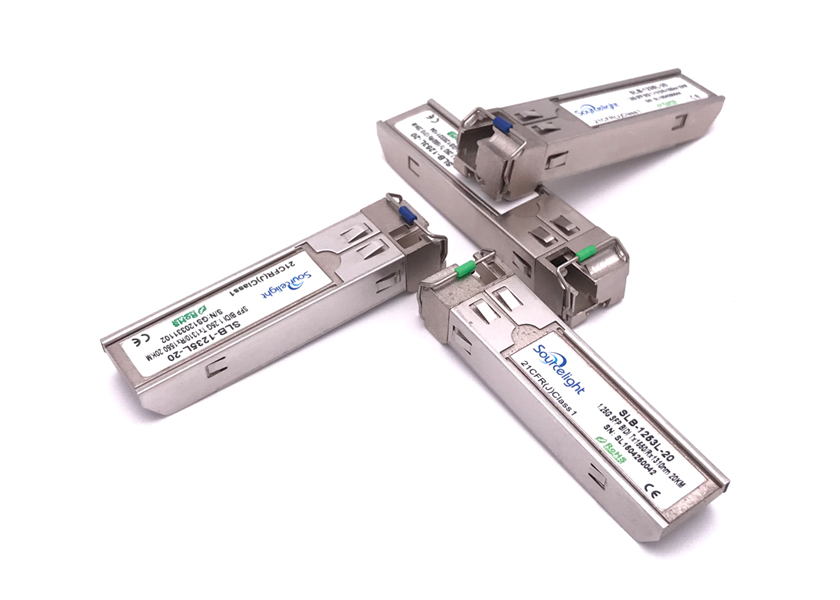

    The SFP BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 80km transmission distance with SMF.


    The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.


    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


    Features

    • Dual data-rate of 2.488Gbps/2.125Gbps operation
    • 1550nm DFB laser and APD photodetector for 80km transmission
    • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
    • Digital Diagnostic Monitoring:
    • Internal Calibration or External Calibration
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature:
    • Standard : 0 to +70°C

    Parameter

    Package (Form Factor)BIDI SFP
    Data Rate (typical)2.488 Gb/s
    Centre WavelengthTx1550nm/Rx1490nm
    Distance80km
    DiagnosticsDigital Monitor
    TransmitterDFB Laser
    ReceiverAPD photo detector
    TX Output Power (dBm)0~+5
    RX Sensitivity (dBm)-28
    Low/High Case Temperature0°C~70°C
    Voltage Supply (typical)3.3v
    ConnectorSimplex LC/UPC

    Application
    • SDH STM-16 and SONET OC-48 system
    • Fiber Channel
    • Switch to Switch interface
    • Switched backplane applications
    • Router/Server interface
    • Other optical transmission systems

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery
