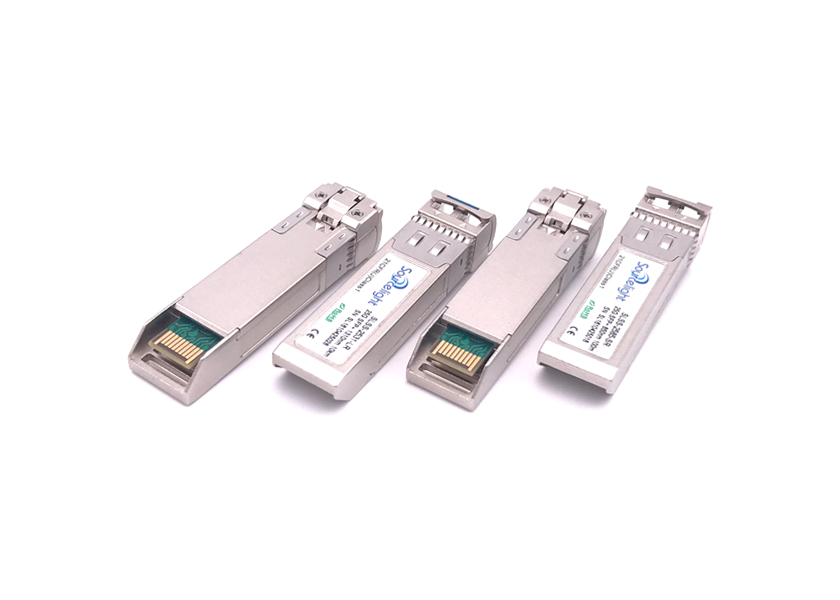

    Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : DS-SFP-FC16G-LW
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 500PCS Per Week
    Delivery Time : Shipped in 1~3 days after PO confirmed
    • Product Details
    • Company Profile

    Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector

    Sfp Optical Transceiver Module DS-SFP-FC16G-LW 1310nm 10km Sm Fiber


    Overview

    16G SFP+ LR transceivers, according to 16 Gigabit Small Form Factor Pluggable “SFP+” Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 3.0 and SFF-8472 Rev. 11.0, are designed for use in Fibre Channel links up to 14.025Gb/s data rate and up to 10km link length. They are compatible with FC-PI-5 Rev. 6.10 and SFF-8432.16G SFP+ LR offer commercial operating temperature options.


    Features

    • Up to 14.025Gb/s bi-directional data links
    • Electrical interface specifications per SFF-8431
    • Management interface specifications per
    • SFF-8432 and SFF-8472
    • SFP+ MSA package with duplex LC connector
    • Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s
    • Uncooled 1310nm DFB Laser
    • Up to 10 km on 9/125um SMF
    • 1.8W maximum power consumption with established link

    Parameter

    Package (Form Factor)SFP+ 16g LW
    Data Rate (typical)14g
    Wavelength1310nm
    Distance10km
    Diagnosticsyes
    TransmitterDFB
    ReceiverPIN
    TX Output Power (dBm)-5~+2
    RX Sensitivity (dBm)-12
    Low/High Case Temperature0°C~70°C
    Voltage Supply (typical)3.3v
    ConnectorLC UPC

    Application
    • 4.25 / 8.5 / 14.025 Gb/s Fibre Channel Rate

    16G SFP+

    16G SFPSourcelight PNDescription
    SFP-FC16G-SWSL-SFP-16G-SR16GBASE-SR SFP transceiver up to 100m over parallel OM3 multi-mode fiber
    SFP-FC16G-LWSL-SFP-16G-LR16GBASE-LR SFP transceiver, up to 10km over single-mode fiber

    FAQ(Frequently Asked Questions)

    1. Can I have a sample order?What is your MOQ?
    Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.


    2. What is the lead time?
    For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.


    3. How do you ship the goods and how long does it take arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


    4. Dose your modules compatible to (HP/Extreme/Juniper,ect)
    Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).


    5. What is your payment terms?
    Usually,we need prepayment by T/T,West Union or Cash.Could also support Credit terms like NET 7DAYS,NET30 DAYS or COD(cash on delivery) for old customers after credit application is approved.

    6. What is your warranty time
    We promise 3 years warranty for all products shipped from us.


    7. Could I return the products if there is a quality problem?
    Yes,if there is a quality problem happen,including products defects,.we could accept free exchange or return and refund.

    8. Could I use our own logo and label?
    Yes,we could provide a OEM service and make the products with your own label.
