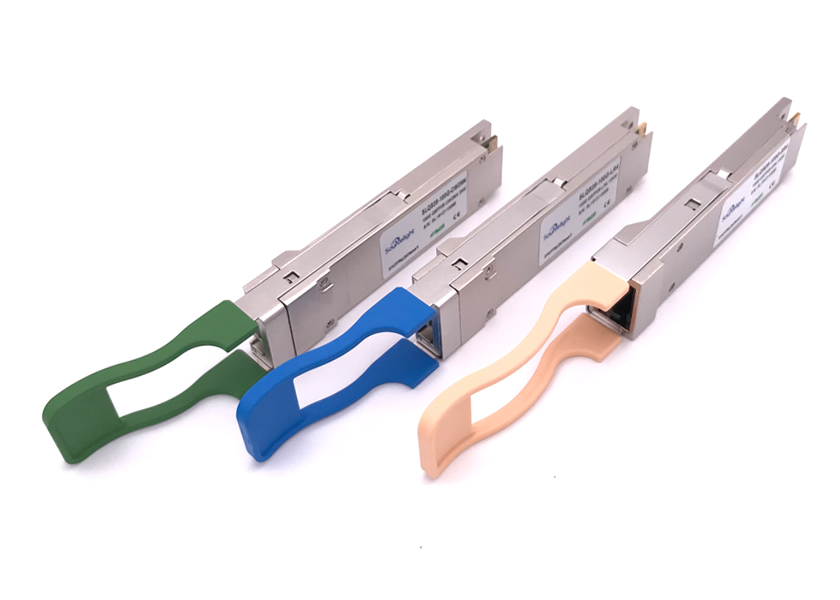

Qsfp28 100gbase Module 25km Smf Lite Optical Transceiver

Qsfp28 100gbase Module 25km Smf Lite Optical Transceiver

Overview
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

Features

Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-ER4
Up to 25km reach for G.652 SMF without FEC
Single +3.3V power supply
Operating case temperature: 0~70^oC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s APD ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.5W
Duplex LC receptacle
RoHS-6 compliant

Parameter

Package (Form Factor)	QSFP28 ER4
Data Rate (typical)	25.78 Gbps/CH
Centre Wavelength	1295.56,1300.05,1304.58,1309.14nm
Distance	25km on SMF
Diagnostics	Digital Monitor
Transmitter	4CH Cooled EML Laser
Receiver	4CH APD
TX Output Power (dBm)	-3~+5.2
RX Sensitivity (dBm)	-13.8
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	Duplex LC/UPC

Application

100GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections

100G QSFP28 ER4 Product

PN	Description
QSFP28-100G-ER4	100GBASE ER4 QSFP28 Transceiver 25km(without FEC) or 30km(wiht FEC) over SMF

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. Dose your modules compatible to(HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.

6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,including products defects,.we could accept free exchange or return and refund.
