Overview

100G CFP LR4 compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface. The transceiver is RoHS-6 compliant and lead-free.

Features

• Hot-pluggable CFP form factor
• Supports 103.1Gb/s and 112Gb/s aggregate bit rates
• Power dissipation < 18W
• RoHS-6 compliant (lead-free)
• case temperature range of 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 10km on Single Mode Fiber
• 4x28Gb/s DFB-based LAN-WDM transmitter
• 10x10G MLD electrical interface
• Duplex LC UPC
• MDIO management interface

Parameter

Application

• OTN OTU4 4I1-9D1F
• 100GBASE-LR4 100G Ethernet

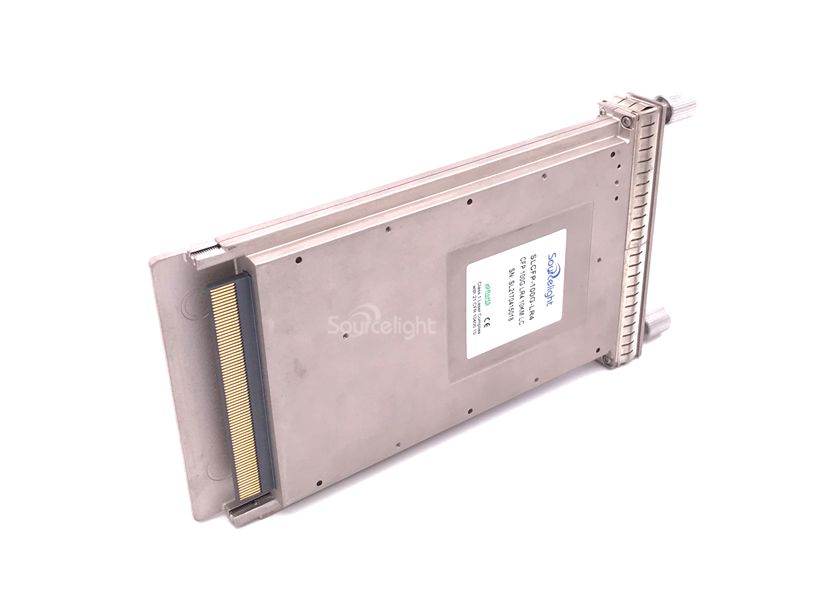

100G CFP LR4 Product

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
