Overview

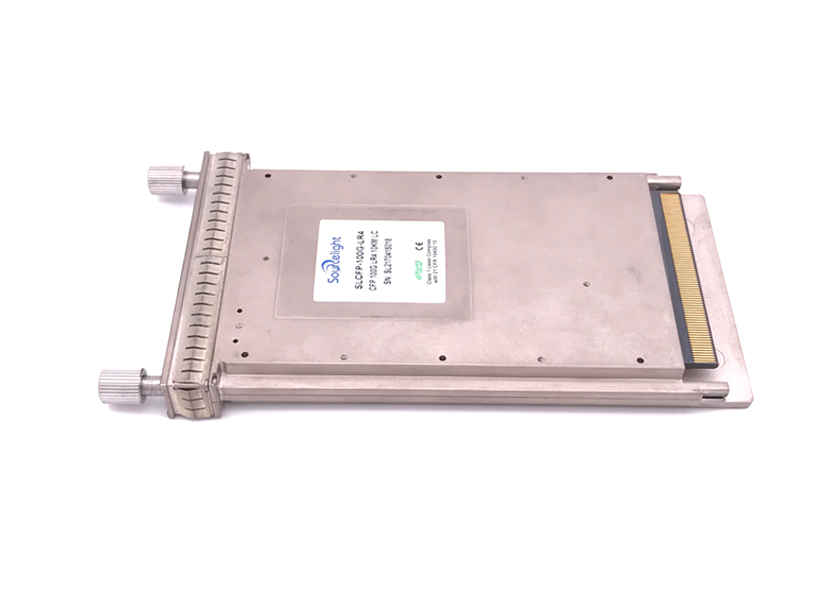

100G CFP LR4 is designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber.They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface. The transceiver is RoHS-6 compliant and lead-free.

Features

• Hot-pluggable CFP form factor
• Supports 103.1Gb/s and 112Gb/s aggregate bit rates
• Power dissipation < 18W
• RoHS-6 compliant (lead-free)
• Commercial case temperature range of 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 10km on Single Mode Fiber (SMF)
• 4x28Gb/s DFB-based LAN-WDM transmitter
• 10x10G MLD electrical interface
• Duplex LC receptacles
• MDIO management interface

Parameter

Application

• OTN OTU4 4I1-9D1F
• 100GBASE-LR4 100G Ethernet

100G CFP2 LR4 Product

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
