Xfp Zr 120km Lc Xfp Fiber Connector For Ftth And Sdh , Xfp Single Mode

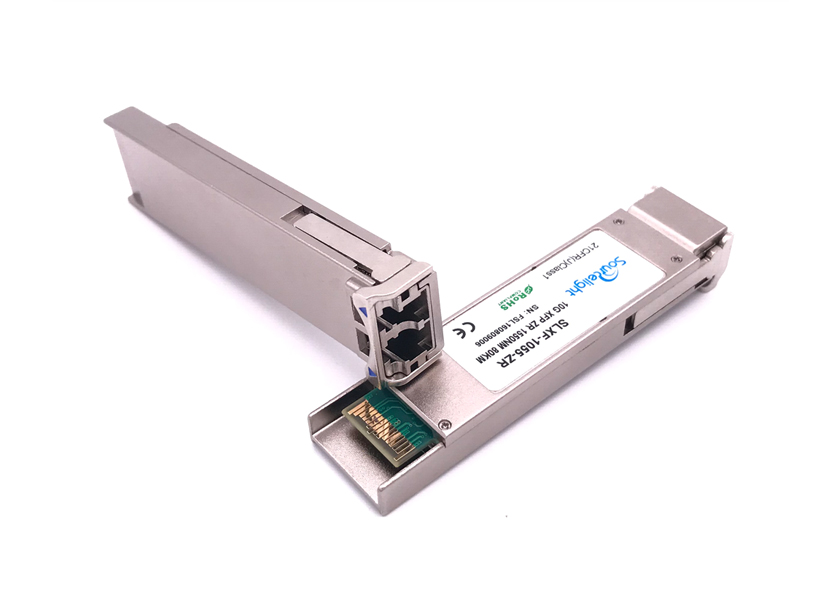

Xfp Zr 120km 1550nm Lc Optical Transceiver Module For Ftth And Sdh

Overview
Sourcelight 120km XFP Transceiver can be used to compensate channel impairments caused by either single mode fiber up to 120 km with EDFA .All modules satisfy class I laser safety requirements. sourcelight XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features

XFP MSA Rev 4.5 Compliant
Data rate from 9.95Gbps to 11.095Gbps
Reference Clock Options
Cooled 1550 nm EML and APD receiver
link length up to 120km (with EDFA)
2400ps/nm Dispersion Tolerance for 120km Single mode fiber
+1.8V,+3.3V,+5V Supply Voltage
Low Power Dissipation 3.5W Maximum
XFI and lineside loopback Mode Supported

Parameter

P/N	10G-XFP-ZR 120KM
Datarate	10G/ps
Distance	120KM
Wavelength	1550nm
Transmitter	EML
Receiver	APD
Media	SMF
DDM/DOM	YES
Connector	LC
Application	Ethernet/SONET/10G FC
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V/5V
Certification	CE/FCC/RoHS/TUV/UL
Brand	Neuter, OEM

Application

SONET OC-192&SDH STM 64 (with/with out FEC)
10GBASE ER/EW (with/with out FEC)
10G Fiber Channel

10G XFP

10G-XFP-SR	10G-XFP-SR-SL	10GBASE-SR 850nm MMF 300m
10G-XFP-LR	10G-XFP-LR-SL	10GBASE-LR 1310nm SMF 10km
10G-XFP-ER40	10G-XFP-ER-SL	10GBASE-ER 1550nm SMF 40km
10G-XFP-ZR80	10G-XFP-ZR-SL	10GBASE-ZR 1550nm SMF 80km
