Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity

    Buy cheap Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity from wholesalers

    Buy cheap Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity from wholesalers
    • Buy cheap Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity from wholesalers
    • Buy cheap Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity from wholesalers

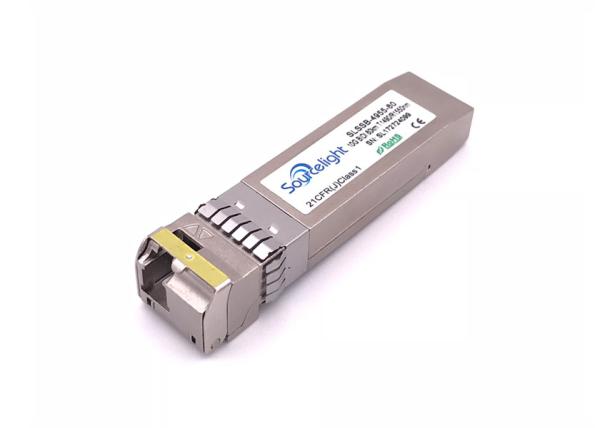

    Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : BIDI SFP+ 80km
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 200PCS Per Week
    Delivery Time : Shipped in 1 days after PO confirmed
    • Product Details
    • Company Profile

    Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity

    Tx1490 Rx1550nm Sfp+ Optical Transceiver -24dBm RX Sensitivity


    Overview

    10G SFP+ BIDI 80KM transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gbps,it designed to be compliant with SFF-8472 and SFP+ MSA.


    The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.


    Features

    • SFP MSA package with single LC connector
    • Typical bidi 1490/1550nm and 1550nm/1490nm for commission
    • APD receiver for high sensitivity
    • Very low EMI and excellent ESD protection
    • Digital Diagnostic Monitor Interface
    • Hot pluggable
    • Support 9.95Gb/s to 11.1Gb/s serial optical interface
    • Up to 80km distance
    • Compliant with SFP+ MSA
    • High transmission margin
    • +3.3V single power supply
    • Below <1.5W power consumption

    Parameter

    Package (Form Factor)SFP+ BIDI 80KM
    Data Rate (typical)10.3 Gb/s
    Centre WavelengthTx1490nm/Rx1550nm
    Distance80km
    DiagnosticsDigital Monitor
    TransmitterDFB Laser
    ReceiverAPD photo detector
    TX Output Power (dBm)+1~+6
    RX Sensitivity (dBm)-24
    Low/High Case Temperature0°C~70°C
    Voltage Supply (typical)3.3v
    ConnectorSimplex LC/UPC

    Application
    • 10GBASE-BX 10.3125Gb/s Ethernet
    • 10GBASE-BX 9.953Gb/s Ethernet
    • SONET OC-192 &SDH STM I-64.1

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery


    Sourcelight BIDI SFP+

    BIDI (WDM) SFP+
    P/NData RateDistanceWavelengthFPPDMedia
    BIDI SFP+ 20KM10G/ps20KM1330DFBPINSM
    BIDI SFP+ 20KM10G/ps20KM1270DFBPINSM
    BIDI SFP+ 40KM10G/ps40KM1330DFBPINSM
    BIDI SFP+ 40KM10G/ps40KM1270DFBPINSM
