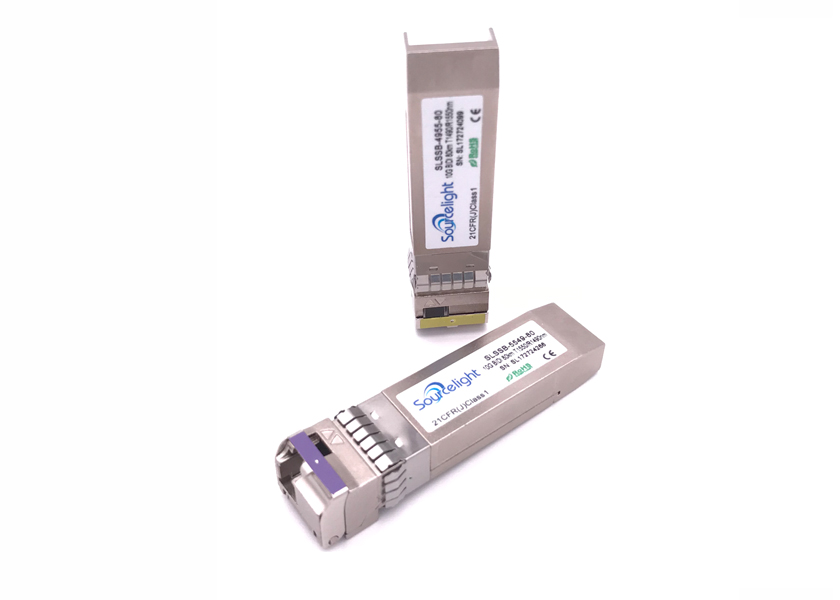

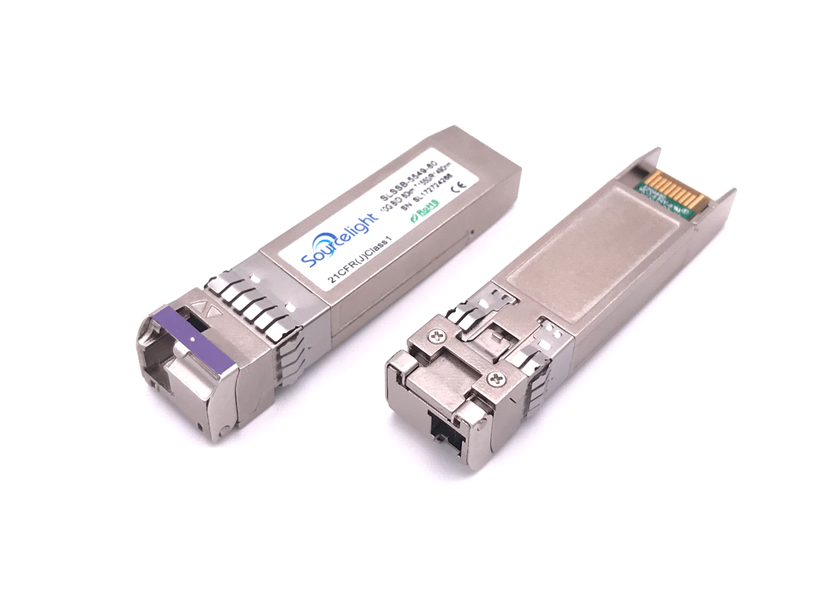

    DDM Optical SFP+ Optical Transceiver 10g Sfp+ Bidi 1490/1550nm 80km

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : 10g BIDI 80km
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 200PCS Per Week
    Delivery Time : Shipped in 1 days after PO confirmed
    • Product Details
    • Company Profile

    DDM Optical SFP+ Optical Transceiver 10g Sfp+ Bidi 1490/1550nm 80km

    10g Sfp+ Bidi 1490/1550nm 80km DDM Optical Transceiver Module


    Overview

    10G SFP+ BIDI 80KM transceiver is designed to be compliant with SFF-8472 and SFP+ MSA.The module data link up to 80km in 9/125um single mode fiber.


    Features

    • SFP MSA package with single LC connector
    • Typical bidi 1490/1550nm and 1550nm/1490nm for commission
    • APD receiver for high sensitivity
    • Very low EMI and excellent ESD protection
    • Support 9.95Gb/s to 11.1Gb/s serial optical interface
    • Up to 80km distance
    • Below <1.5W power consumption

    Parameter

    Package (Form Factor)SFP+ BIDI 80KM
    Data Rate (typical)10.3 Gbps
    Centre WavelengthTx1490nm/Rx1550nm
    Distance80km
    DiagnosticsDigital Monitor
    TransmitterDFB Laser
    ReceiverAPD photo detector
    TX Output Power+1~+6(dBm)
    RX Sensitivity-24(dBm)
    Voltage Supply3.3v(typical)
    ConnectorSimplex LC UPC

    Application
    • 10GBASE-BX 10.3125Gb/s Ethernet
    • 10GBASE-BX 9.953Gb/s Ethernet
    • SONET OC-192 &SDH STM I-64.1

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery
