Overview

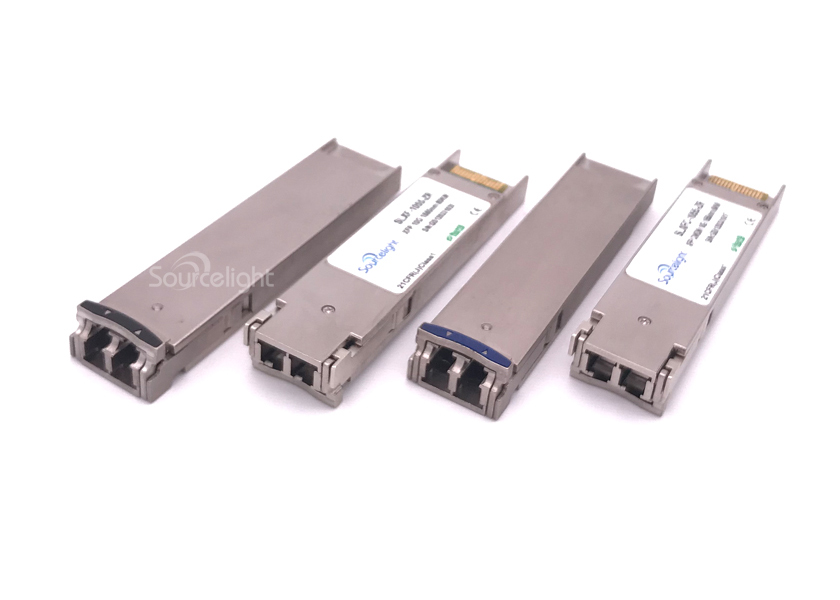

Sourcelight XFP SR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).
The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10G systems.

Features

• Supports 9.95Gbps to 11.1Gbps bit rates

• Maximum link length of 300m (50um,MMF,2000MHz.Km)

• 850nm VCSEL laser and PIN receiver

• XFP MSA Rev 4.5 Compliant

• No reference clock required

• +1.8V,+3.3V Supply Voltage

• Low Power Dissipation 1.5W Maximum

• XFI and lineside loopback Mode Supported

• 0ºC to 70ºC Operating Case Temperature

• Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power

• RoHS6 compliant (lead free)

Parameter

Application

• 10GBASE-SR/SW 10G Ethernet

• 1200-Mx-SN-I 10G Fiber Channel

• Other optical links
