1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance

    Buy cheap 1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance from wholesalers

    Buy cheap 1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance from wholesalers
    • Buy cheap 1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance from wholesalers
    • Buy cheap 1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance from wholesalers

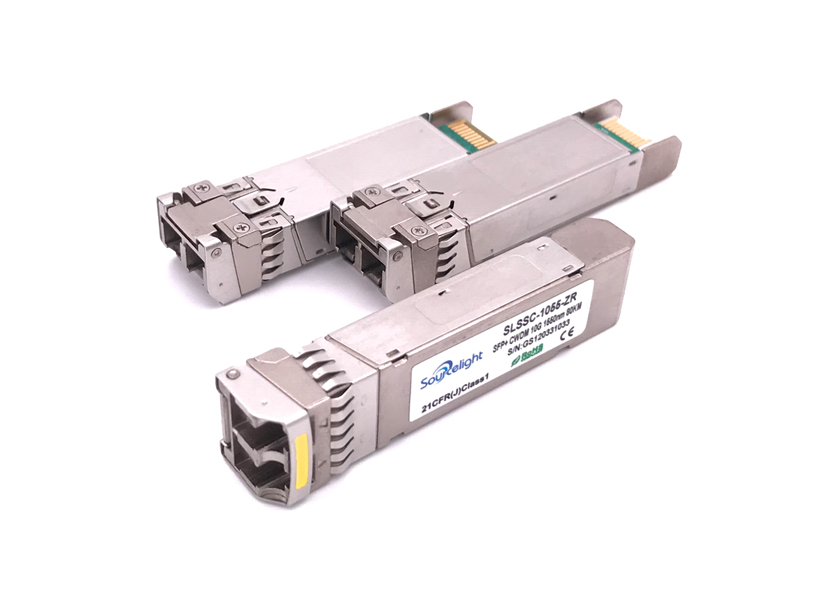

    1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance

    Ask Lasest Price
    Brand Name : Sourcelight or OEM
    Model Number : SFP+ CWDM ZR 80km
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 200PCS Per Week
    Delivery Time : Shipped in 1 days after PO confirmed
    • Product Details
    • Company Profile

    1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance

    1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance


    Overview

    10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.


    Features

    • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/EW
    • Electrical interface compliant to SFF-8431 specifications.
    • 2-wire interface for management specifications compliant with SFF 8472
    • Operating case temperature: 0 to 70 °C
    • All-metal housing for superior EMI performance
    • Low power consumption, less than1.6 w
    • Advanced firmware allow customer system encryption information to be stored in transceiver
    • RoHS compliant

    Applications

    • High-speed storage area networks
    • Computer cluster cross-connect
    • Custom high-speed data pipes

    Parameter

    Package (Form Factor)CWDM SFP+ ZR 80KM
    Data Rate (typical)10.3 Gb/s
    Centre Wavelength1470nm~1610nm
    Distance80km
    DiagnosticsYES
    TransmitterCooled EML Laser
    ReceiverAPD photo detector
    TX Output Power (dBm)0~+3
    RX Sensitivity (dBm)-25
    Low/High Case Temperature0°C~70°C
    Voltage Supply (typical)3.3v
    ConnectorDuplex LC/UPC

    Application

    • 10GBASE-LR at 10.3125Gbps
    • Other optical links

    Quality Certification

    Quality and standards are the foundation of Sourcelight. We are dedicated to providing customers with outstanding, standards-compliant products and services. Sourcelight has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

    Quality 1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance for sale
