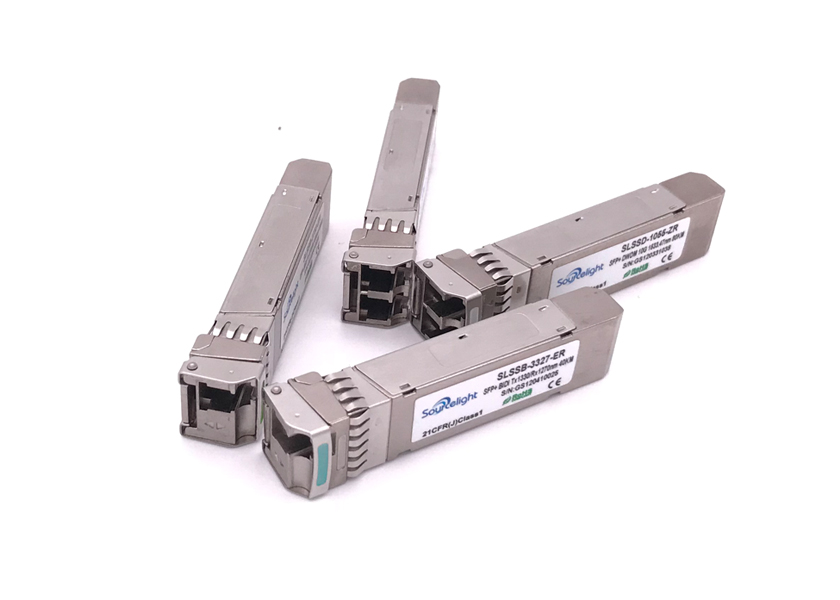

Wdm Smf Sfp+ Optical Transceiver 40km For 2x Fc And 10gbase Ethernet

Wdm Smf Sfp+ Optical Transceiver 40km For 2x Fc And 10gbase Ethernet

Overview

The SFP+ BIDI 40KM series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-ER/EW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The SFP+ BIDI 40KM module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm;.The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Features

Supports 9.95Gb/s to 10.3Gb/s data rates
Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Single 3.3V Supply
Up to 40km on 9/125um SMF
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
SFP+ MSA SFF-8431 Compliant
Digital Diagnostic SFF-8472 Compliant
RoHS compliant and Lead Free
Operating case temperature: Standard: 0 ~ 70 °C

Parameter

Package (Form Factor)	BIDI SFP+ 40KM
Data Rate (typical)	10.3 Gb/s
Centre Wavelength	Tx1330nm/Rx1270nm
Distance	40km
Diagnostics	Digital Monitor
Transmitter	DFB Laser
Receiver	PIN photo detector
TX Output Power (dBm)	+1~+5
RX Sensitivity (dBm)	-15
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	Simplex LC/UPC

Application

10GBASE-ER at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Sourcelight BIDI SFP+ 10G

BIDI (WDM) SFP+
P/N	Data Rate	Distance	Wavelength	FP	PD	Media
BIDI SFP+ 20KM	10G/ps	20KM	TX1330	DFB	PIN	SM
BIDI SFP+ 20KM	10G/ps	20KM	TX1270	DFB	PIN	SM
BIDI SFP+ 40KM	10G/ps	40KM	TX1330	DFB	PIN	SM
BIDI SFP+ 40KM	10G/ps	40KM	TX1270	DFB	PIN	SM
