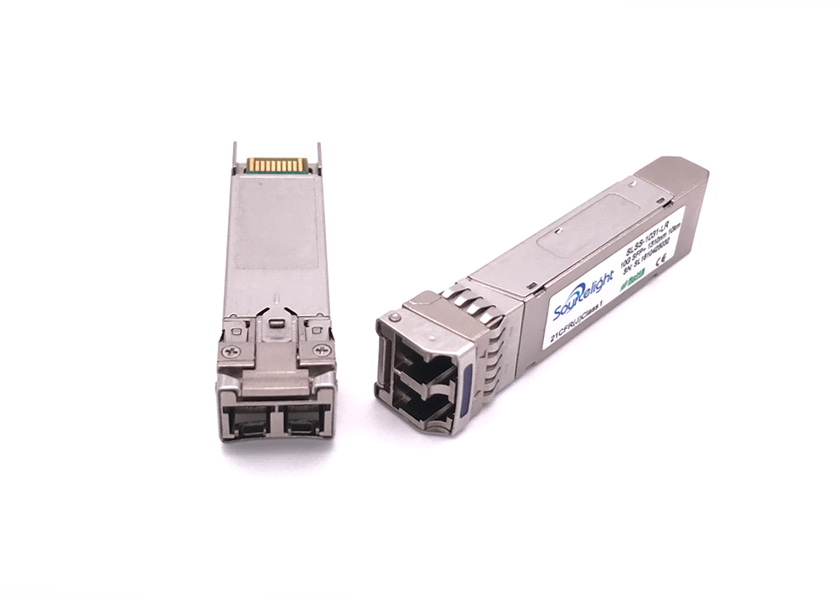

    Single 3.3V Power Supply Fibre Channel Transceiver Duplex LC 40km SFP+ Transceiver

    10GBASE-CWDM CWDM-SFP10G SM, Duplex LC 40km SFP+ Transceiver


    Overview

    Sourcelight SFP+ ER CWDM 40km Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.


    The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA.


    All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.


    Features

    • Compliant with SFF-8431,SFF-8432 and IEE802.3ae
    • 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
    • Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
    • Cooled EML transmitter and PIN receiver
    • link length up to 40km
    • Low Power Dissipation 1.5W Maximum
    • -5ºC to 70ºC Operating Case Temperature
    • Single 3.3V power supply
    • Diagnostic Performance Monitoring of module
    • RoHS compliant and lead free

    Parameter

    Package (Form Factor)CWDM SFP+
    Data Rate (typical)10.3 Gb/s
    Centre Wavelength1470nm~1610nm
    Distance40km
    Diagnosticsyes
    TransmitterCooled EML Laser
    ReceiverPIN photo detector
    TX Output Power-1~+2(dBm)
    RX Sensitivity-14(dBm)
    Low/High Case Temperature0°C~70°C
    Voltage Supply (typical)3.3v
    ConnectorDuplex LC/UPC

    Application
    • 10GBASE-ER
    • 10G Fiber Channel
    • CWDM NetWORKl

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery
